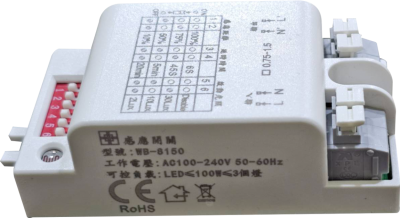

WB-8150A

Microwave Motion Sensor

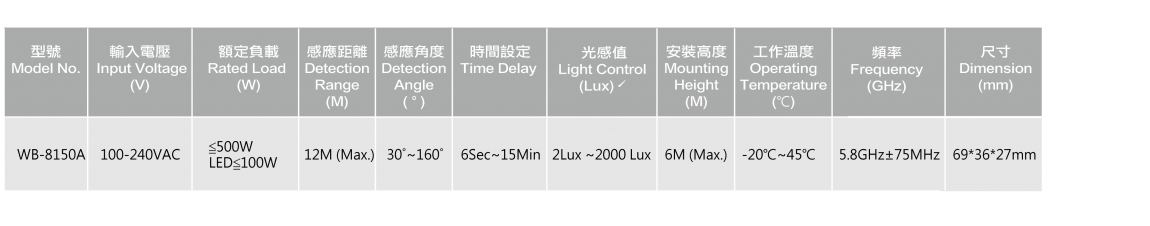

Feature
● Microwave motion sensor is designed based on Doppler radar principle and technology
● Trigger by object movement
● Without influence by temperature, humidity, air flow and dust
● Compact size makes it suitable to fix within most luminaries, the waves can penetrate non-metallic object

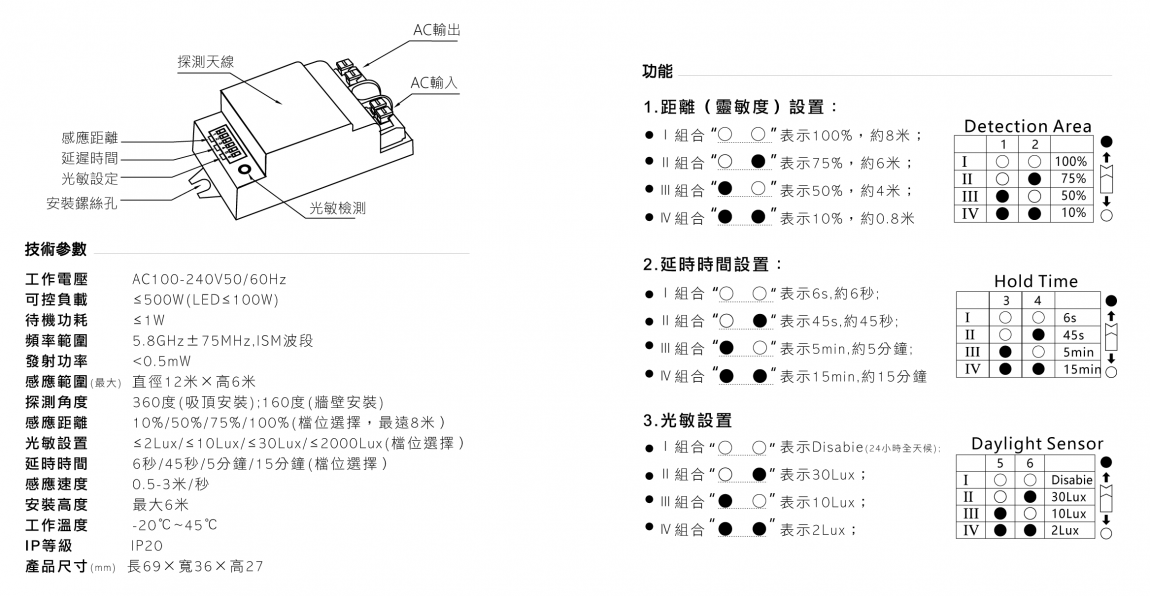

● Detection area, time delay and daylight threshold can be precisely set via DIP switch
● Detection range,time delay, light control can be adjustable
● Microwave frequency 5.8GHz±75MHz, ISM wave band
● Transmission power <0.5mW on-off function
● 4 pole press-in terminals (L’ N’ L N), easy to install and use
● Installation for indoor, wall and ceiling mounted
● IP level: IP20

Applications
Widely use in energy saving lighting, bulb, LED lighting etc., mounted at stairways, porch,corridor and garage, car parking lots etc.
