IR-02142

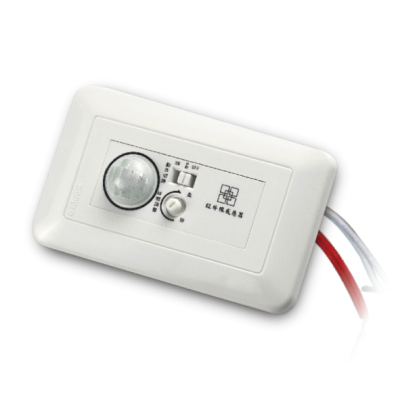

PIR SENSOR with 4 wires (wall mounted)

Feature
● Adopt advanced imported internal sensor and circuit design, less in false or missing action
● PIR sensor that continuously sense the detection area and switches on immediately when detects movement, it will switch off according to the delaying time set.
● The switch have 3 operating modes: ON – turn on the light for 24 hours a day
    OFF – switch off the light
    AUTO – auto sensing object movement
● Time delay adjustable : the arrow indicator points to the “upper” time setting is length, arrow indictor points to the “lower”, the time setting is short
● Light sensitivity adjustable – it can work in the daytime and at night when it is adjusted on the “sun” position (Max),  it can work in the ambient light less than 3Lux when it is adjusted on the“moon” position (Min)
● Connection: 2 in & 2 out wiring type

Applications
● Hallway, stairwell, corridor, garage
